    High Power 48V-72V 3000W-5000W 21'' Motorcycle Rear Wheel Intelligent Conversion Kits

    Attention:
    The wheel size comes with 21" Motorcycle Wheel (21x1.85 Rim, 80/100-21 Off-road Motorcycle Tire or 2.75-21 All Terrain Motorcycle Tire). The OD of 21" Motorcycle Wheel with 80/100-21" Off-Road Tire is OD=694mm or 2.75-21" All Terrain Tire is OD=684mm; please ensure your frame is suitable with such size wheel), Motor dropout width: 155-160mm rear hub motor (Single-speed Gear) is required
    This kit include all you need to convert a bike to an E-bike, except the battery! (We also supply battery, please kindly check our battery category.)



    Features of the Product:

    1. With or without 21'' Motorcycle Front Wheel (hollow hub).
    2. 21'' Motorcycle Rim Rear Motor Wheel 48V/60V/72V Universal, Rated: 48V 3300W- 72V 5000W, Peak: 48V 4800W- 72V 8000W.
    3. Sabvoton 100A Sine Wave Intelligent Programmable Controller 48V/60V/72V Universal, Rated: 48V 3300W- 72V 5000W, Peak: 48V 4800W- 72V 8000W
    4. UKC1 Color Display
    5. 4-piston Hydraulic Disc Brake Kits
    6. Twist Throttle Drive
    7. Pedelec Assistant Sensor/8 Magnetic PAS Drive
    8.  Alarm System: Remote start + Alarm + Motor Lock
    9.  Bluetooth Module (parameters setting via phone APP)



    Wheel Specification:

    21'' Motorcycle Wheel has same OD as 26''x3.0 Bike Wheel, much Stronger than bicycle wheel

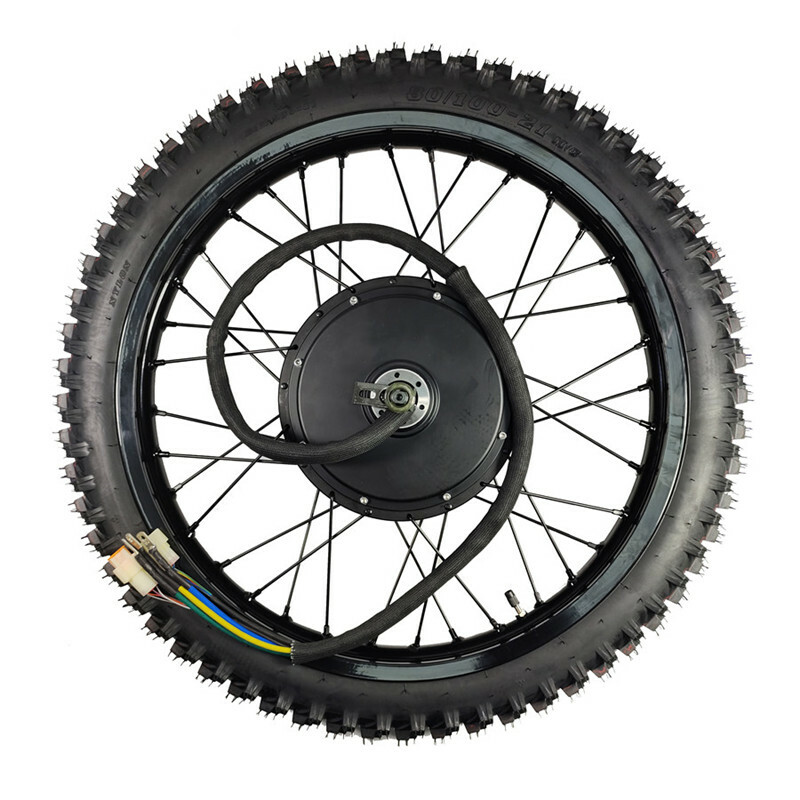

    48V/60V/72V 3000W-5000W Brushless Gearless Hub Motor|Rear Wheel-Single Speed Freewheel (Includes Tire and tube)

    Max Load: Each Wheel Has About 195kgs Limit, Two Wheels is 390kgs

    DNP High Quality High Torque eBike 18-teeth Freewheel.

    Remote start + Alarm + Motor Lock

    Applicable to E-Bike, E-Motorcycle, E-Tricycle and so on

    Tile Magnet,low noise and long working life

    Certificates: CE, EN60335-1:2012+A112014

    High Motor Efficiency: >90%

    Max Torque: 160 N.M.

    Speed: About 90km-110km/h

    Hub dropout width: 155-160mm rear hub motor (Single-speed Gear)


    Motor Types:
    The 3.5T Motor is high speed version which is suitable for road riding. The maximum speed is about 110km/h with 100A Controller.
    The 5T Motor is high torque version which is suitable for slope climbing riding. The maximum speed is about 80km/h with 100A controller.



    Controller Advantage:
    1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
    2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable
    3.Universal Input Voltage Range: 48V/60V/72V
    4.Work with or without display
    5.Parameter setting via Mobile Phone App or Computer
    6.All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
    7.Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.
    8.Best heat sinking with thicker Heat sink Aluminium Plate
    9.Anodized Aluminium Controller Case against scratch

    Controller Technical Data:
    General Specification:
    1. Power supply: 48V/60V/72V, MAX DC current: 100A, Max phase current: 250A
    2. Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W
    3. Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W
    4. Low Voltage Protection: 40V/50V/60V
    5. Brake: Low Voltage Brake
    6. Alarm: Low Voltage Alarm
    7. Rotor Position Detecting Method: Hall sensor
    8. Mobile phone App or computer software can communicate with the controller to modify parameter


    RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly.

    1. FOC-180° sinusoidal drive controller applied to BLDCM or PMSM.
    2. It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time.
    3. The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.
    4. The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.
    5. The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
    6. Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.
    7. System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
    8. Multi peripheral interfaces: cruise, anti-theft electronic brake, etc.
    9. Parameter modifications and settings are available through Mobile phone via Bluetooth or computer via USB data cable
    10. CAN BUS is optional to communicate with body instrument and BMS


    Hydraulic Brake Specification:

    1. Dual Front oil pipes length: each one 91cm
    2. Rear oil pipe length: 156cm
    3. Power cut off cable length (with quick release connector): 49cm
    4. Adapter wires length (from 3-pin male quick release connector to SM-2A 2-pin male plug): 114cm









48V-72V 21inch 3000W-5000W Electric Bike Electric Motorcycle Rear Wheel Conversion Kits with sabvoton 100A controller

QS205 5000W Motor;
21" Motorcycle Wheel;
Sabvoton 48-72V 100A Controller
$939.00
34% OFF
  • Motor Type:
  • Tire Type:
  • Front Wheel:
+
-
(800 available)
