Bafang Fat Wheel Rear Motor 36V 48V 500W 750W 175mm 190mm Thread-on Cassette



This rear-drive motor, which is compatible with the disc brake, has a rated power of 750W, a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal power for vehicles. Strong and efficient, this motor working together with a thread-on freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies and snow bikes. Color is black

Specification:
1.48V 500W (9-pin Plug) or 48V 750W (Z916 or L1019 Plug)
2.Rear Fat Wheel Hub Motor, Cassette or Thread-on Type

3.Dropout Width:Front Motor is 135mm, Rear Motor is 175 MM or 190 MM
4.Color is black
5.The motor can be installed on standard fat/snow bike easily
6.High starting torque,Max torque is above 80N.m,good performance on climbing
7.Cultch is used on drive unit,more safty
8.High efficiency,low consumption,low noise,long travel distance

Packing List:
1.Bafang Fat Wheel 48V 750W 175mm or 190mm Cassette or Thread-on rear hub motor: 1 pc
2.800mm motor extension cable: 1 pc

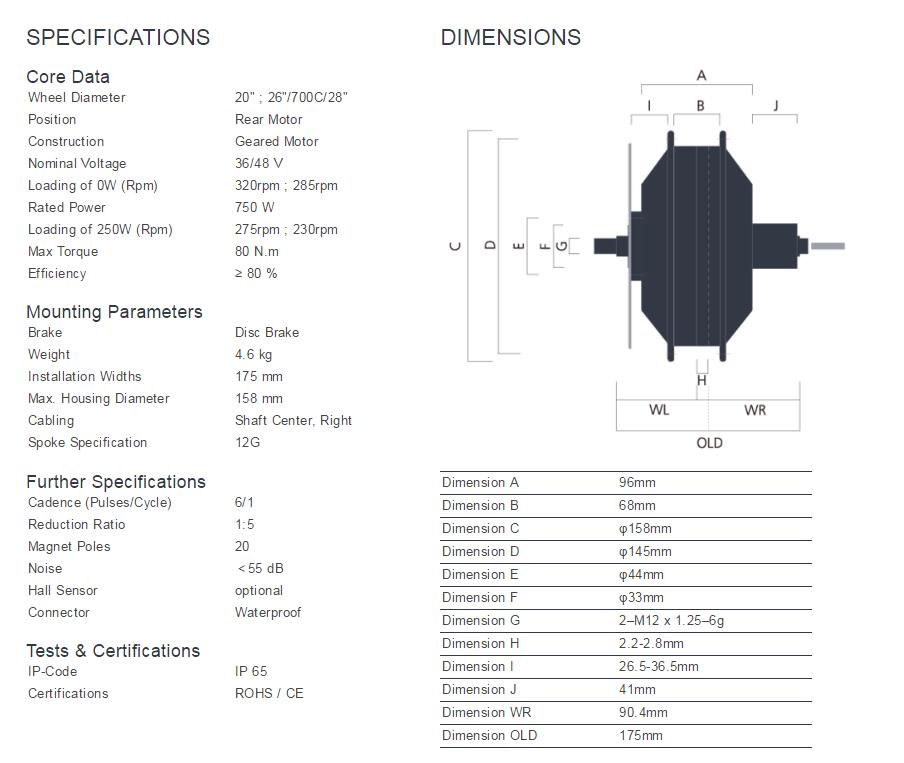

Specification:
